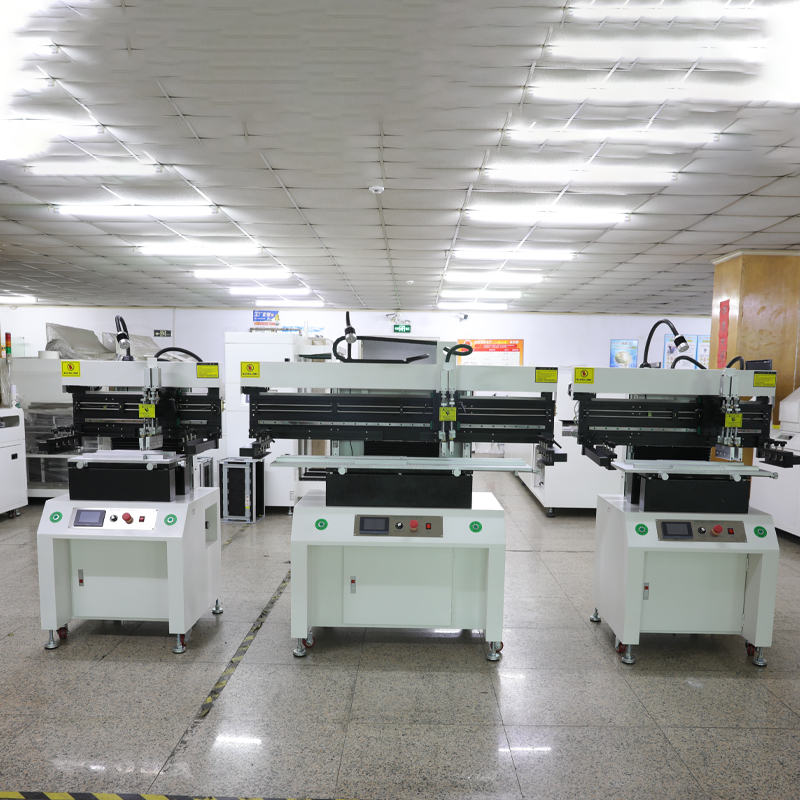

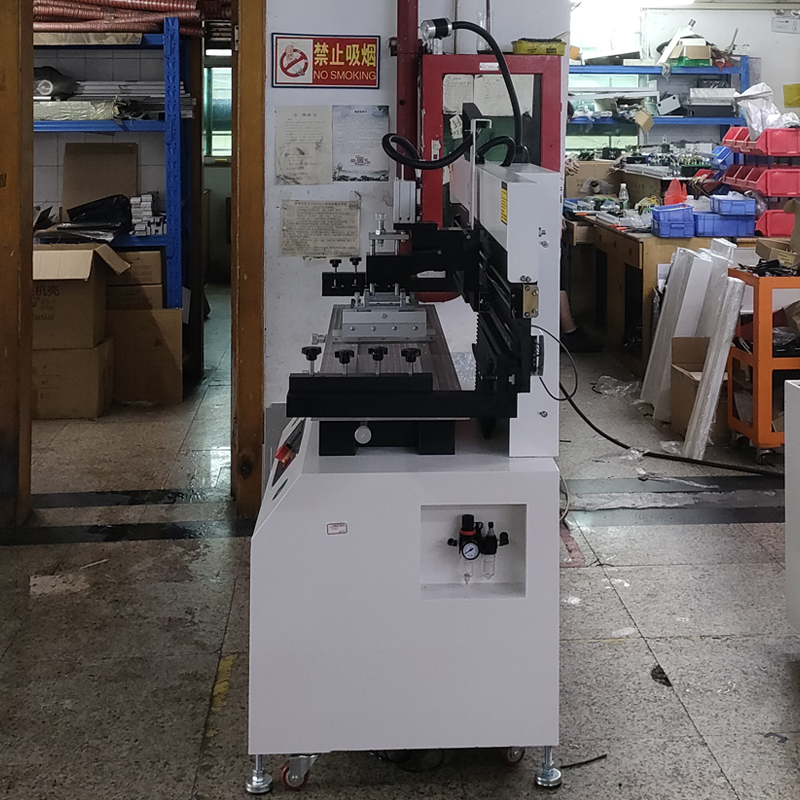

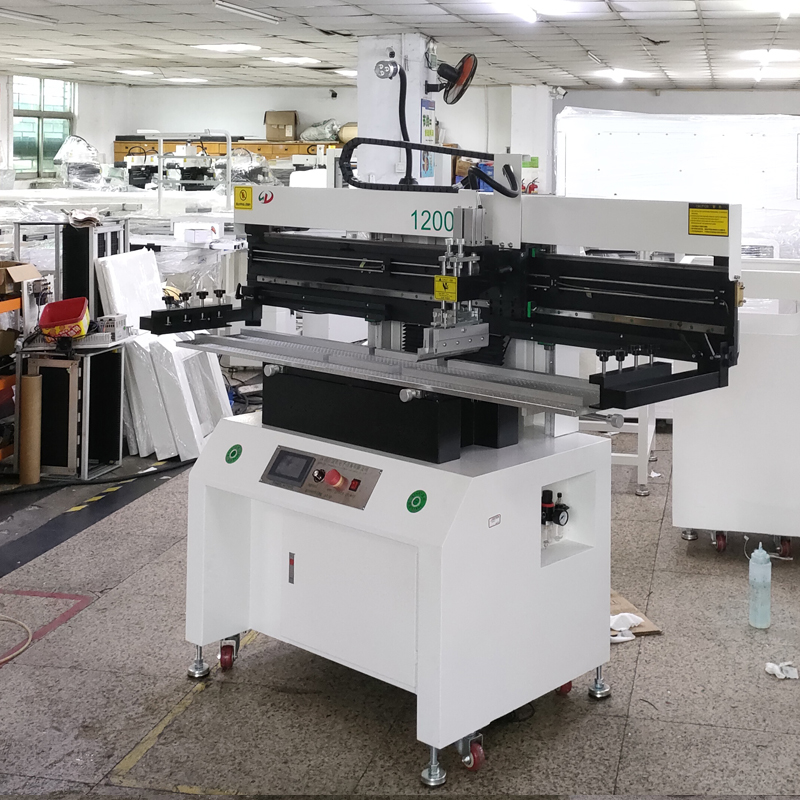

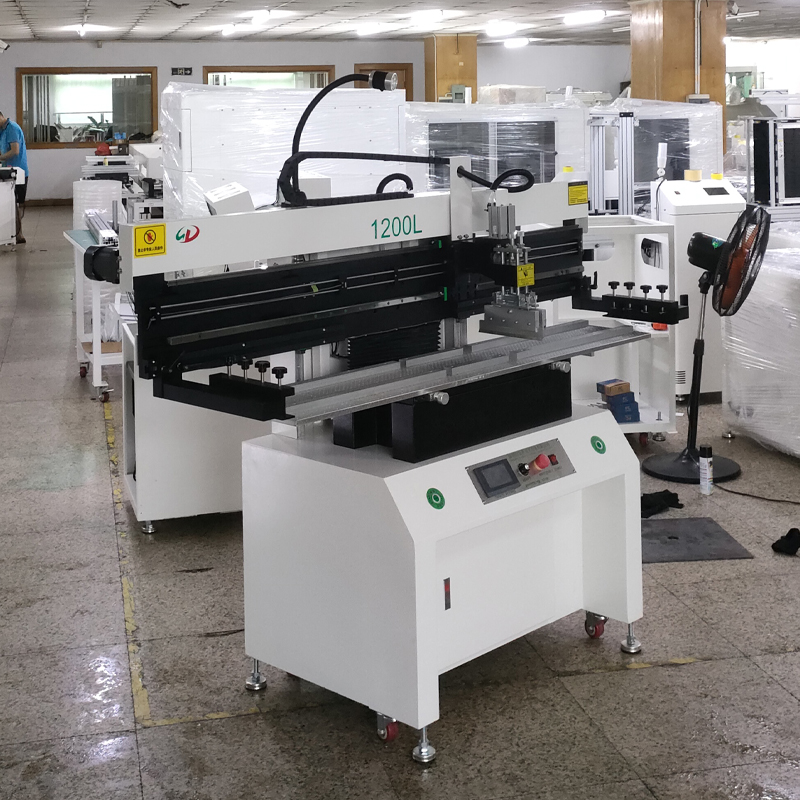

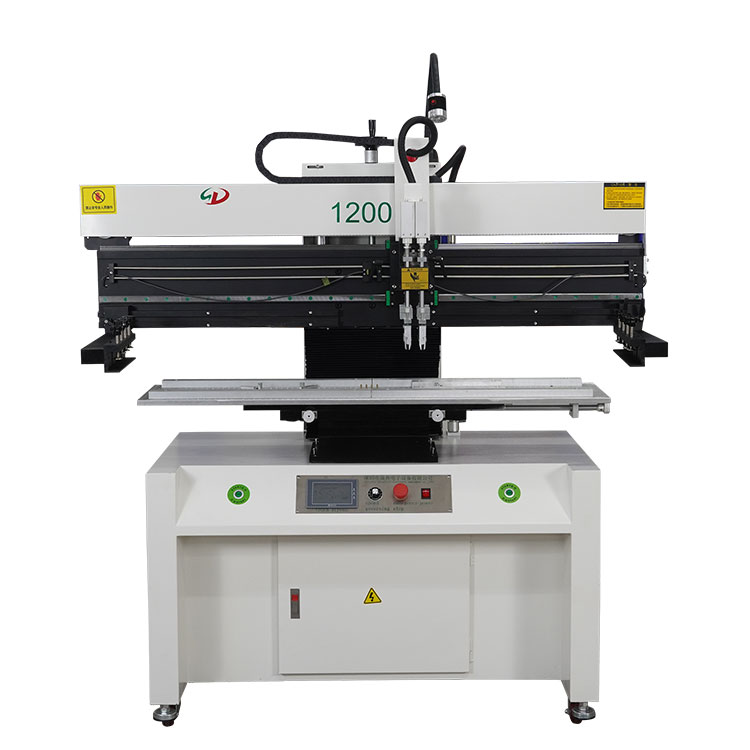

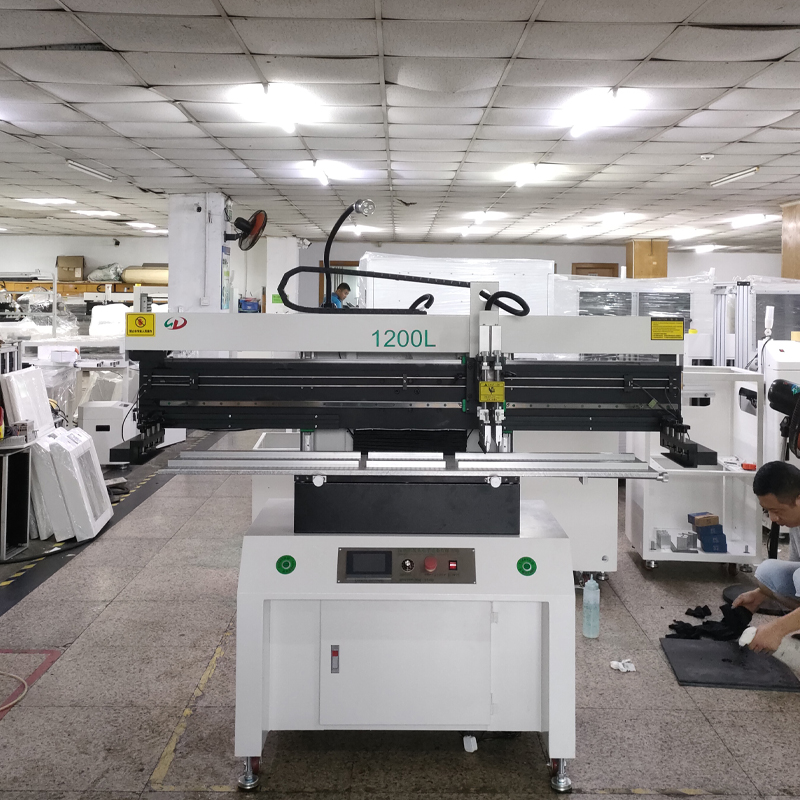

PCB Semi-automatic Printing Machine Model:1200
1.Microcomputer control, touch screen display, menu operation interface;
2. Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);
3. The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);
4. Equipped with frequency converter speed control system, the blade running speed is stable;
5. The work operation is operated by two-hand button switch, which is safe and reliable;
6. The touch screen menu can independently set the pause time of the steel mesh as a whole;
7. The positioning and fixing methods of the PCB board include reference hole positioning, reference edge positioning and reference hole reference edge simultaneous positioning, template positioning and other different precise positioning forms;
8.The time display function in the touch screen, the automatic counting function of printing times, and the screen protection function;
9. It has adjustable blade speed and emergency stop safety function;
10. Printing mode: single, double, secondary (optional menu setting);
11. Printing working status: automatic / semi-automatic / jog three printing status (menu setting optional);
2. Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);
3. The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);
4. Equipped with frequency converter speed control system, the blade running speed is stable;
5. The work operation is operated by two-hand button switch, which is safe and reliable;
6. The touch screen menu can independently set the pause time of the steel mesh as a whole;
7. The positioning and fixing methods of the PCB board include reference hole positioning, reference edge positioning and reference hole reference edge simultaneous positioning, template positioning and other different precise positioning forms;
8.The time display function in the touch screen, the automatic counting function of printing times, and the screen protection function;
9. It has adjustable blade speed and emergency stop safety function;
10. Printing mode: single, double, secondary (optional menu setting);
11. Printing working status: automatic / semi-automatic / jog three printing status (menu setting optional);
Semi Automatic Solder Paste Printer
Semi Automatic Solder Paste Printer
Semi Automatic Solder Paste Printer
Semi Automatic Solder Paste Printer
Semi Automatic Solder Paste Printer
Semi Automatic Solder Paste Printer
|
Model |
1200 |
|
Direction of movement |
Move left and right |
|
Workbench |
1250*320mm |
|
Power Supply |
Single phase 220V |
|
Dimension |
1680*780*1650mm |
|
Air Supply |
0.5-0.8mpa |
|
Starting Power |
0.2KW |
|
Weight |
About 250KG |
|
Steel mesh clamping device |
Manual locking |
|
Printing Range |
1200*320mm |
|
Moving Motor |
Three-phase motor 60W |
|
Moving Speed |
0-2200mm/min |
|
Rail |
Taiwan silver linear guide |
|
PLC Control |
Siemens |
|
Touch Screen |
4.3# display control screen |
|
Main Cylinder |
SC80*150 |
|
Cutter Head Cylinder |
CDU25-50 |
|
Frequency Converter |
ENC |
|
Floodlight |
LED light |
